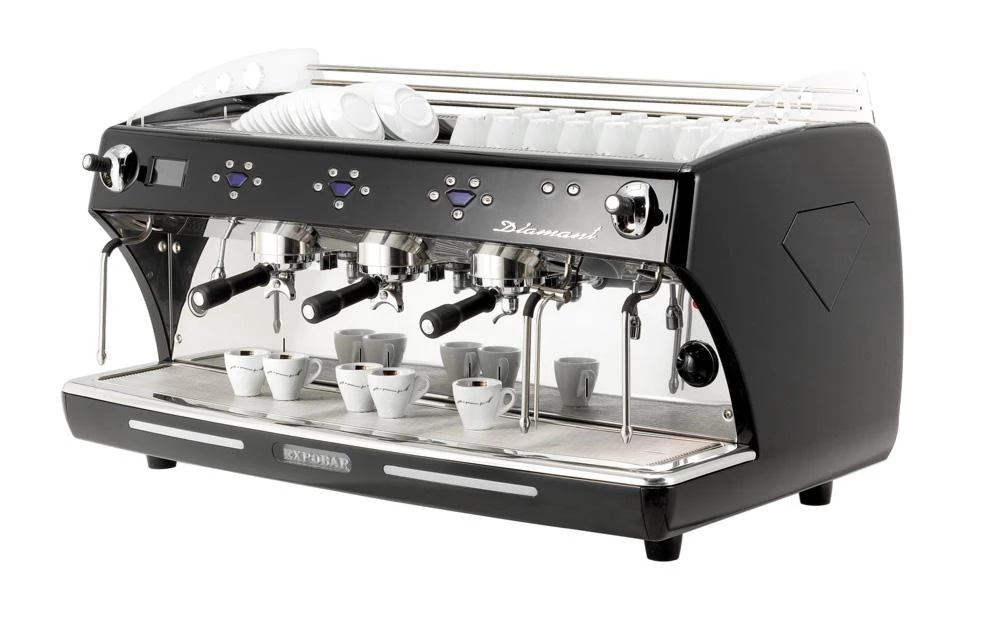

Espresso 3 Group Diamant Multi Boiler Coffee Machine

The Diamant 3 Group Multi Boiler is an automatic espresso coffee machine with 3 groups, electronic switchboard to control the coffee dosages volumetrically and automatic water filling. It boasts individual boilers at 1.5 litres with 1200 W elements, for each brewing group and a 99.9% copper boiler with 17.5 litres capacity and a 4000 W element.

Other exciting features include:

• Automatic back flush program on each group
• Built-in volumetric motor and pump fitted with two retention valves and solid particle filter
• In-built magnetic calcium neutraliser on pump and pre-heat exchangers
• Direct pre-infusion chamber on each group
• Programmable time clock for automatic switch on/off
• Digital Display
• Maintenance management with warning light for programmable service reminders
• Memorises total brewed coffees
• Long stainless steel non-burn steam tubes
• Isolating taps on steam/hot water taps and groups allow the machine to be serviced without turning off the machine
• Each group has a extraction time clock (shot clock and grinder alarm if extraction time is outside set parameters)
• Four programmable volumetric dosages for each group
• Three steam taps, with one equipped heat sensor for automatic control of temperature (no need for jug thermostat)
• Two electronic hot water outlets which can be programmed for different volumes

Technical Specifications

• Product Code: 01300342
• Available In High Group Configuration: Yes – Only available in High Group
• Functionality: Volumetic/Semi Automatic Control
• Power Requirements: Single Phase (3 Phase on Request)
• Maximum Installed Power: 20 amps
• Boiler Size: 17.5ltr + 3 x 1.5ltr
• Boiler Composition: 99.9% Pure Copper
• Automatic Boiler Filling: Yes
• Heating Element Power: 4000 + 1200 + 1200 + 1200 Watts
• Hot Water Outlets: 2 Electronic Controlled
• Steam Outlets: 3 (with 1 equipped with heat sensor for automatic control of temperature). Auto Shut Off.
• Pump Type: Rotary
• Pump Capacity: 200 L/hr
• Standards Compliance: CE
• Pump Pressure Gauge: Yes

Weight	130 kg
Dimensions	108 x 62 x 60 cm
